1.1 Product Overview

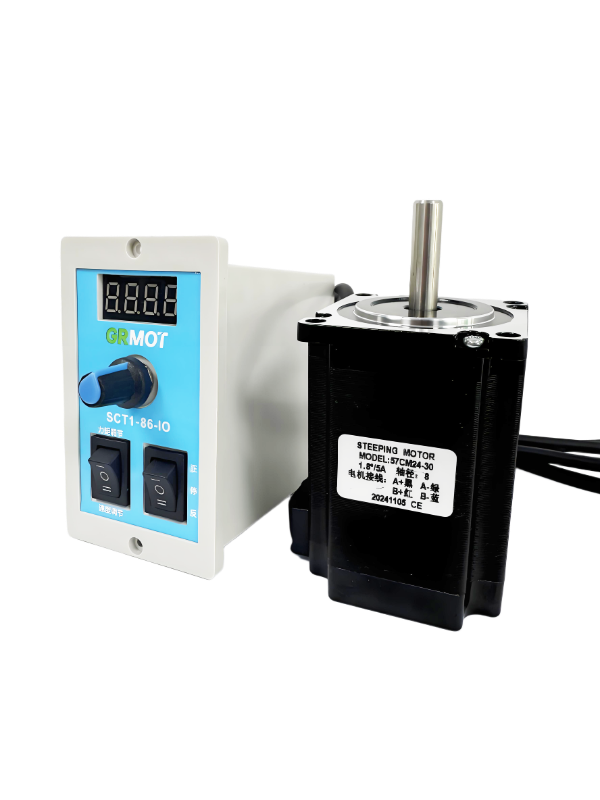

The SCT1-86E-IO driver is a newly launched DC speed regulation and torque adjustment support IO control closed-loop stepper driver, equipped with a 4-digit digital tube. Users can adjust the speed value and torque level value through the knob, and the digital tube can display the set speed value and torque level value; The power supply voltage range of the driver is DC24V~70V, mainly matching the closed-loop motor of the 86 base, but it can also drive the closed-loop motor of the 42~60 base.

1.2 Product Features

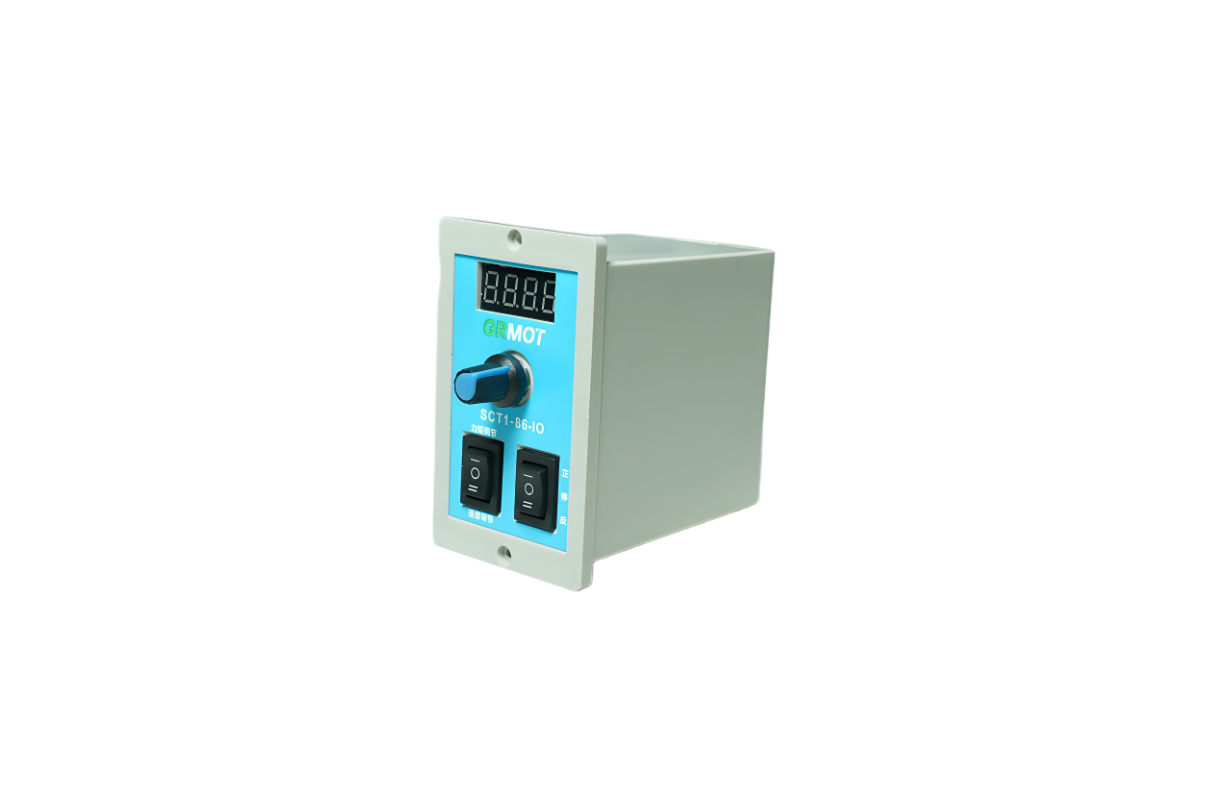

● Compact design for easy installation

New generation 32-bit DSP technology with excellent stability, strong compatibility, and high cost-effectiveness

● Can adapt to closed-loop motors with 42~86 bases, mainly matching closed-loop motors with 86 bases

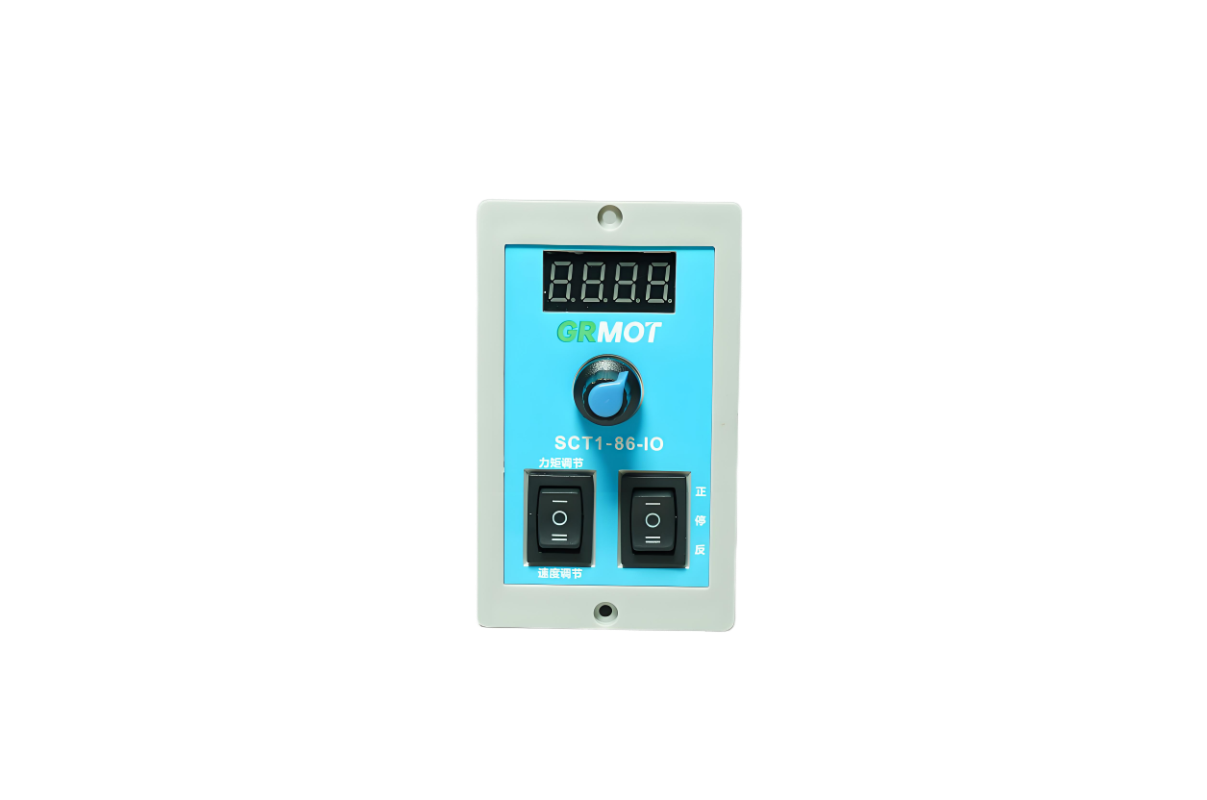

Equipped with a 4-digit digital display for speed and torque level values

● The speed value and torque level value can be adjusted through the knob

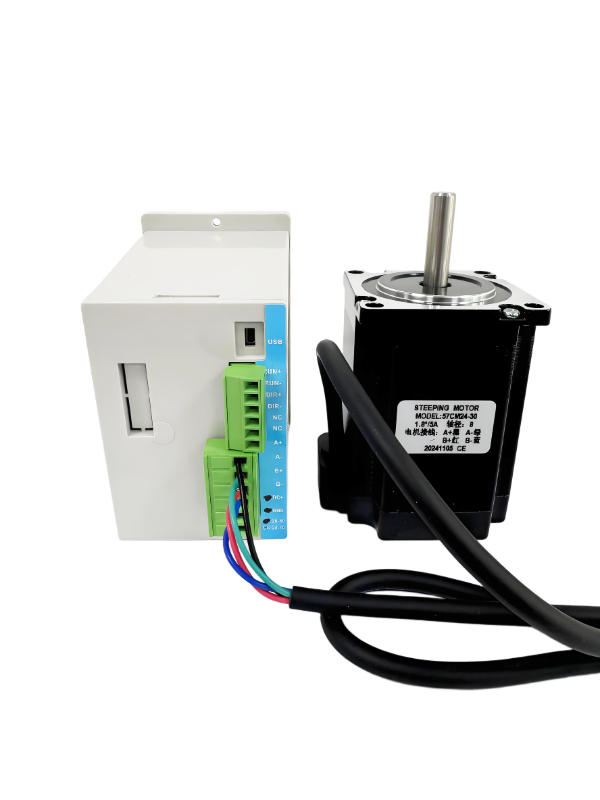

● Control forward rotation, reverse rotation, and stop through a 3-speed 3-pin switch, or control start stop through the IO interface on the back of the drive

Low vibration and low noise

● Equipped with overvoltage, undervoltage and other alarm protection functions

● Input voltage range: DC24V~70V

1.3 Application Fields

Suitable for various small and medium-sized automation equipment and instruments, such as intelligent logistics, textile industry, barrier gate industry, winding industry, etc.
