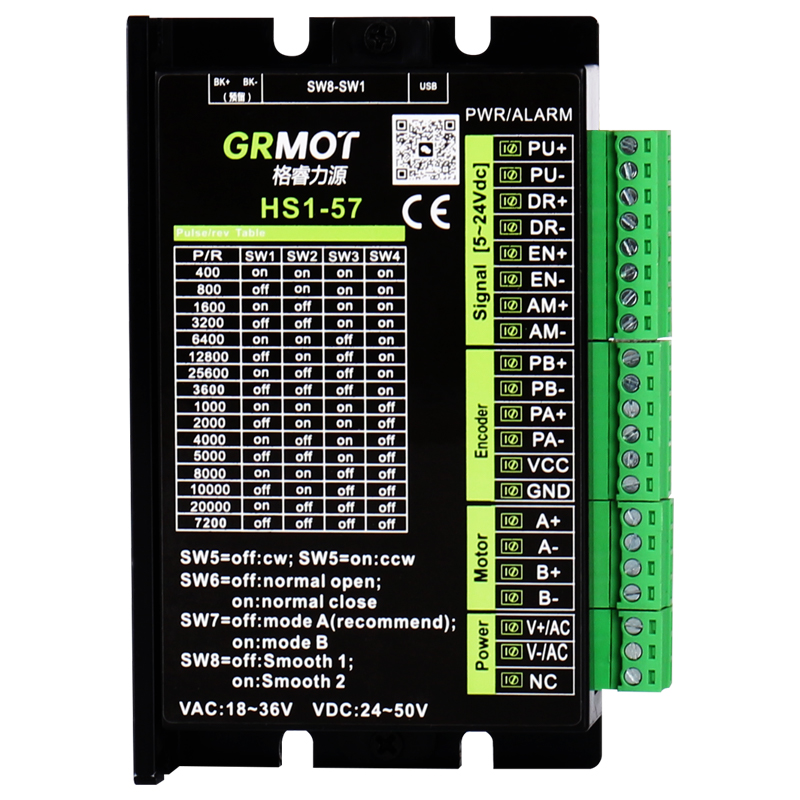

The latest digital hybrid stepper servo driver with serial port debugging function launched by Gree IoT Technology Co., Ltd. adopts the latest 32-bit DSP control technology and integrates MODBUS-RTU standard protocol specifications. Users can set multiple parameters such as subdivision and working mode within 200-40000 through the upper computer debugging software, greatly enriching the practical functions of the product and meeting the application needs of most occasions.
Closed loop drive hybrid servo, also known as closed-loop stepper motor or hybrid servo motor, is a driving system that combines the advantages of stepper motor and servo motor.
The hybrid servo system adopts a closed-loop control method, which provides real-time feedback on the position and speed information of the motor through an encoder installed on the motor. The driver compares the feedback signal from the encoder with the input command signal, and adjusts the motor output in a timely manner if there is a deviation, thereby achieving precise position control and speed control, fundamentally solving the problem of step loss in open-loop stepper systems.
Usage environment and parameters
cooling method | natural coolingFan cooling | |
Usage environment | occasion | Cannot be placed next to other heat generating equipment. Avoid dust, oil mist, corrosive gases, high humidity, and strong vibration areas. Combustible gases and conductive dust are prohibited |
temperature | 0——50℃ | |
humidity | 40—90%RH | |
vibration | 10~55Hz/0.15mm | |
storage temperature | -20℃~65℃ | |
